STR型橡膠減震器安裝說明
STR?Rubber shock absorber?Installation instructions
安裝前，請確認淞江集團橡膠減震器的型號和規格是否正確。
Before installation,make sure the model and the specification are correct.
安裝說明
Installation guide
所需工具：公制口徑17mm（M10）、19mm（M12）、24mm（M16）開口扳手。
Required tools：17mm（M10）、19mm（M12）、24mm（M16）open wrenches.
檢查附件是否齊全，橡膠減震器是否有缺陷或破損。（如圖1）
Check the isolator and other accessories see if they are all completely or having any defects.(Fig 1)
將橡膠減震器放到設備的安裝位置。（如圖2）
Place the isolator on the correct installation position.(Fig 2)
鎖緊螺母和墊片，確保設備和橡膠減震器固定到位。（如圖3）
Fasten the nuts and washers to ensure the equipment feet holes are fixed to the isolator.(Fig 3)
STR型橡膠減震器結構圖：
STR type rubber shock absorber Structure drawing:
STR型橡膠減震器參數表：
STR type rubber shock absorber parameter table:
| 型號 Model |
L (mm) |
W (mm) |
H (mm) |
CS (mm) |
A (mm) |
B （mm） |
載荷 | |
| Min | Max | |||||||
| STR-100 | 95 | 53 | 48 | M10 | 77 | 10 | 50 | 150 |
| STR-130 | 127 | 77 | 70 | M12 | 101 | 14 | 150 | 450 |
| STR-180 | 180 | 118 | 70 | M16 | 149 | 14 | 450 | 1000 |

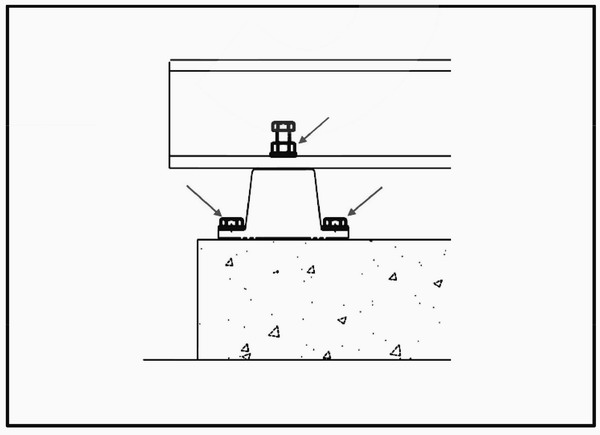

圖1）檢查附件是否齊全，橡膠減震器是否有缺陷或破損。
Fig 1）Check the isolator and other accessories see if they are all completely or having any defects.

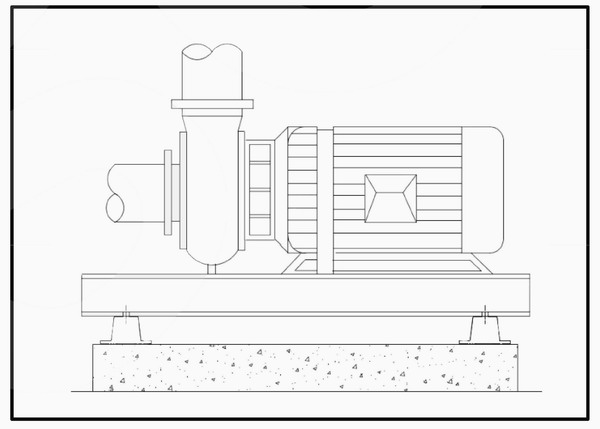

圖2）將橡膠減震器放到設備的安裝位置。
Fig 2）Place the isolator on the correct installation position.
圖3）鎖緊螺母和墊片，確保設備和橡膠減震器固定到位。
Fig 3）Fasten the nuts and washers to ensure the equipment feet holes are fixed to the isolator.
