同心異徑CASE SHOW

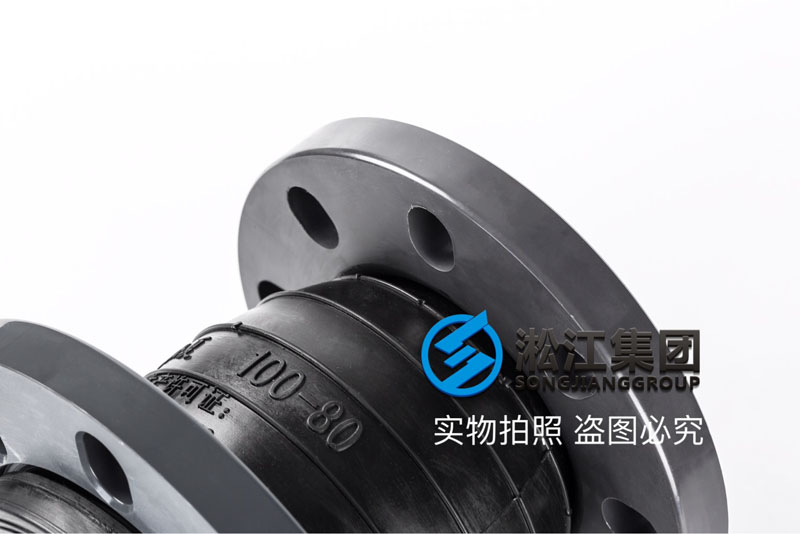

KYT-PVC-DN100x80變徑橡膠管接頭 PVC法蘭

服務內容：KYT-PVC-DN100x80變徑橡膠管接頭 PVC法蘭

簡介：KYT-PVC-DN100x80變徑橡膠管接頭“PVC法蘭橡膠管接頭” Variable diameter rubber pipe joint "PVC flange rubber pipe joint" 上海淞江減震器集團有限公司官方網站為您介紹：KYT-PVC-DN100x80變徑橡膠管接頭“......

KYT-PVC-DN100x80變徑橡膠管接頭“PVC法蘭橡膠管接頭”
Variable diameter rubber pipe joint "PVC flange rubber pipe joint"

上海淞江減震器集團有限公司官方網站為您介紹：KYT-PVC-DN100x80變徑橡膠管接頭“PVC法蘭橡膠管接頭”信息，淞江集團生產各種橡膠管接頭產品，以下是為客戶提供的PVC法蘭變徑橡膠管接頭產品，主要用于海水處理、泳池、海洋館等管道系統。
Shanghai Songjiang absorber group limited official website for your introduction: KYT-PVC-DN100*80 adjustable rubber pipe joint PVC flange rubber pipe joint information, Songjiang group specializing in the production of various rubber pipe joint products, the following is the PVC flange diameter rubber pipe joint products for customers, mainly used for water treatment, swimming pool, Museum of marine pipeline system.

產品名稱：DN100x80變徑橡膠管接頭

法蘭材質：PVC
橡膠材質：天然橡膠（NR）
型號：KYT
口徑：DN100xDN80
主要特點是可以解決金屬管道連接時不同口徑的問題，同時有減震降噪的作用，可節約管道安裝零件，節約成本。它由內膠層、錦綸簾子布增強、外膠層復合的橡膠球體和松套PVC法蘭組成。具有耐壓高、彈性好、位移量大、平衡管道偏差、吸收振動、降低噪音效果好、安裝方便等.點，可廣泛用于供水排水、循環水、暖通空調、消防、造紙、制藥、石油化工、船舶、水泵、壓縮機、風機等管道系統。
普通型天然橡膠用于輸送－10℃～80℃的空氣、壓縮空氣、水等無腐蝕、無高溫的環境。
三元乙丙橡膠可以適用于：的海水、弱酸堿、石灰漿液等。
丁腈橡膠可以用于：的耐油介質，主要是液壓油，注意：柴油和航空煤油汽油用不了。
特殊型可以內襯聚四氟乙烯用于輸送－20℃～160℃的強酸堿、高溫、油類等固態物料。

Flange material: PVC

Rubber material: natural rubber (NR)

Model: KYT

Caliber: DN100xDN80

The main feature is that it can solve the problem of different caliber when connecting metal pipes, and at the same time has the function of vibration reduction and noise reduction. It saves pipeline installation parts and saves cost. It is made up of a rubber ball with an inner rubber layer, a polyamide cord fabric, a rubber ball with an outer rubber layer and a loose sleeve PVC flange. With high voltage, good elasticity, large displacement, balance pipe deviation, absorb vibration and reduce the noise effect, convenient installation, and can be widely used in water supply and drainage, circulating water, HVAC, fire protection, papermaking, pharmaceutical, petrochemical, shipbuilding, water pump, compressor, fan and other piping systems.

The common type of natural rubber used for conveying - 80 DEG C. air, compressed air, water and other non corrosive and non high temperature environment.

Three ethylene propylene rubber can be applied to the sea water, weak acid base, lime slurry and so on

Nitrile rubber can be used in: oil resistant medium under 120 degrees, mainly hydraulic oil, attention: diesel and aviation kerosene gasoline can not be used.

The special type can be lined with polytetrafluoroethylene for transporting solid materials such as strong acid base, high temperature, oil and so on at 20 to 160 C.

KYT-PVC-DN100x80變徑橡膠管接頭發貨現場：
