【FKM】DN65氟橡膠軟接頭“實物拍照”

服務內容：【FKM】DN65氟橡膠軟接頭“實物拍照”

簡介：【FKM】DN65氟橡膠軟接頭“實物拍照” DN65 fluoro rubber soft connector "photo in kind" 上海淞江減震器集團有限公司官方網站為您介紹：【FKM】DN65氟橡膠軟接頭“實物拍照”信息，淞江集團為客戶提供氟橡膠......

【FKM】DN65氟橡膠軟接頭“實物拍照”
DN65 fluoro rubber soft connector "photo in kind"

上海淞江減震器集團有限公司官方網站為您介紹：【FKM】DN65氟橡膠軟接頭“實物拍照”信息，淞江集團為客戶提供氟橡膠軟接頭實物拍照，讓客戶進一步通過實物拍出來的照片來了解氟橡膠軟接頭產品的外觀，以下是詳細介紹。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [FKM] DN65 Fluororubber Soft Joint "physical photography" information, Meijiang Group provides customers with fluororubber soft joint physical photography, so that customers can further understand the appearance of fluororubber soft joint products through physical photography, the following is a detailed introduction.

氟橡膠的耐酸性能比三元乙丙橡膠還要好，而且也可以耐高溫120度以下，是橡膠中耐酸和耐高溫性很好的材料，號稱橡膠之王。
Fluoroelastomer has better acid and alkali resistance than EPDM, and can withstand high temperature below 120 degrees. It is a good material for acid and alkali resistance and high temperature resistance in rubber, so it is called the king of rubber.

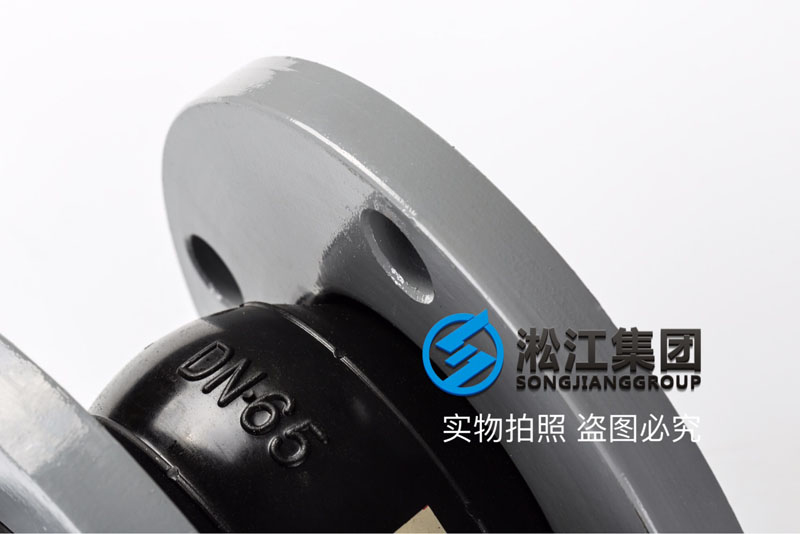

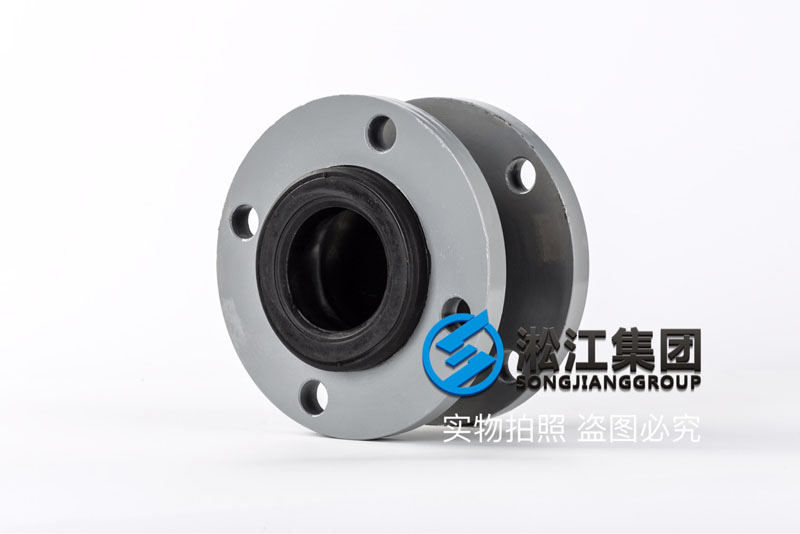

一、DN65氟橡膠軟接頭實物拍照：

二、DN65氟橡膠軟接頭參數介紹：

名稱：氟橡膠軟接頭

型號：DN65

安裝長度：115mm

軸向壓縮：12mm

軸向拉伸：6mm

橫向位移：10mm

偏轉角度：15°

標準：GB/T 9119-2000

壓力：PN16

法蘭：碳鋼 / 球墨

介質：強酸、高溫120度以下

質保：1年

橡膠材質：氟橡膠（FKM）

使用優點：減震、降噪、保護管道設備的長期使用，降低維修成本。

生產廠家：上海淞江減震器集團有限公司

了解該產品更多型號參數表請點擊：【樣冊P33】KXT型可曲撓橡膠接頭

資質證書：合格證、質保書、檢驗報告、德國萊茵TUV認證、國家型式試驗報告、第三方性能檢測報告、材質報告等。

淞江集團橡膠接頭生產流程：原材料檢測-小料自動配料-大料自動配料-自動混煉-自動成筒-自動成型-自動硫化-質量檢測-實驗室檢測-交付客戶

Name: fluorine rubber soft joint

Model: DN65

Installation length: 115mm

Axial compression: 12mm

Axial tension: 6mm

Lateral displacement: 10mm

Deflection angle: 15 degrees.

Standard: GB/T 9119-2000

Pressure: PN16

Flange: carbon steel / spheroidal graphite

Medium: acid base, high temperature below 120 degrees.

Warranty: 1 years

Rubber material: fluorine rubber (FKM)

Advantages: shock absorption, noise reduction, protection of pipeline equipment for long-term use, and reduction of maintenance costs.

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report, etc.

Production Process of Rubber Joints in Songjiang Group: Raw Material Testing - Automatic Blending of Small Material - Automatic Blending of Large Material - Automatic Mixing - Automatic Barrel Forming - Automatic Forming - Automatic Vulcanization - Quality Testing - Laboratory Testing - Delivery to Customers

三、DN65氟橡膠軟接頭公司介紹：
Introduction of Songjiang group

除了氟橡膠可以耐強酸之外，還有一款內襯四氟橡膠接頭也可以耐強酸堿，內襯四氟耐強酸堿的性能比氟橡膠還要好，價格和氟橡膠價格都差不多，如需了解請點擊：PTFE內襯聚四氟乙烯橡膠接頭
